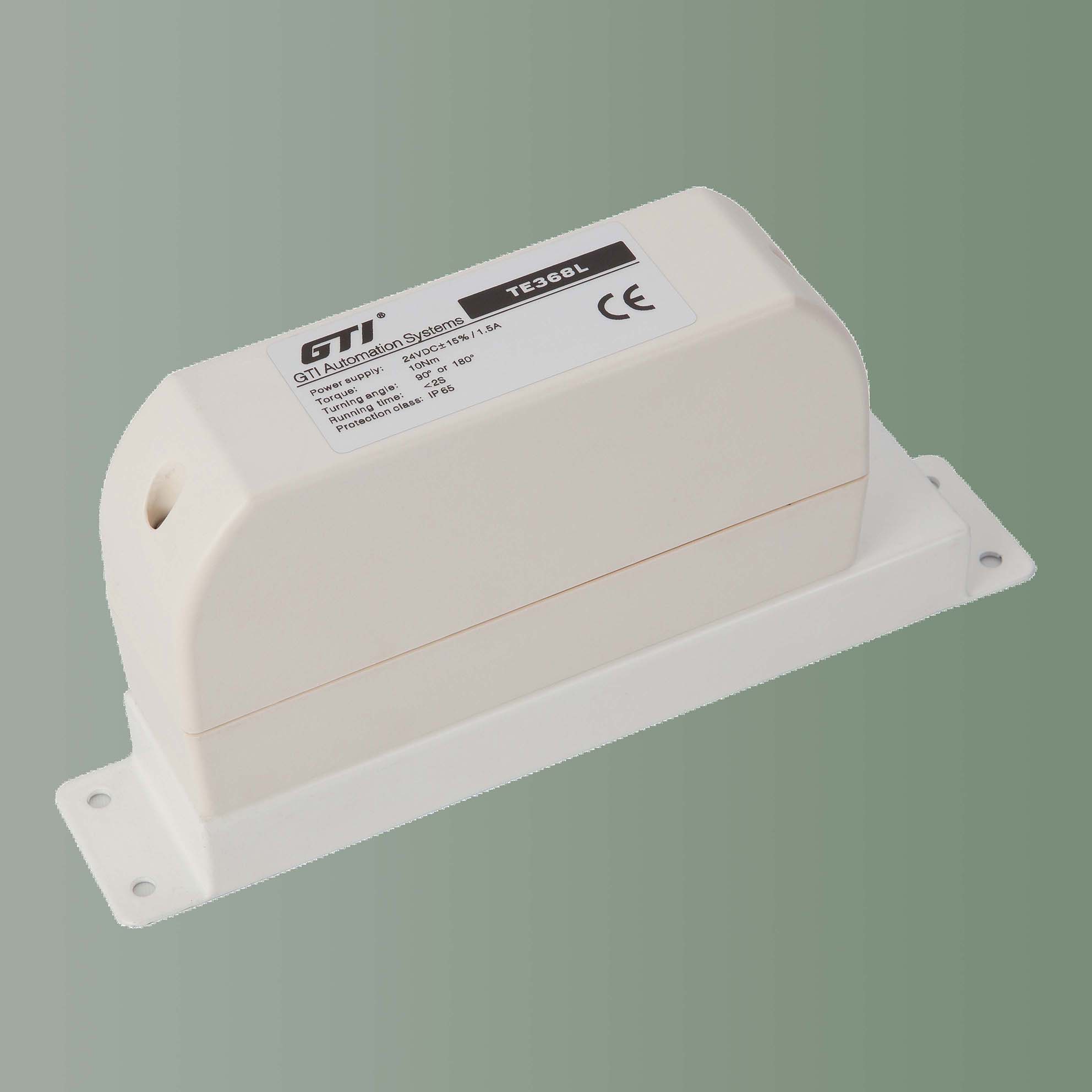

Multi-point Locking Actuator
TE368L
MAIN FEATURES
- Dimension: 159 × 36.5 × 86mm
- Suitable for multi-point locking windows
- Automatic control for locking or unlocking the windows
- Install on standard fitting with or without window sill
- Improve stability and enhance building security
- Versatility and simple installation
|
Specification
|
Technical Data
|
| Power supply |
24 V DC ± 10% / 1.0A
|
| Torque |
10Nm
|
| Turning angle |
90°or 80°
|
| Running time |
＜ 2s
|
| Protection class |
IP 65
|
| Dimension |
159 × 44 × 86mm
|
| Working temperature |
-15°C ~ +75°C
|
|
|
